Downstream Equipments

All machines bearing the Adremac brand are ensured by creating a manageable and sustainable quality in accordance with the employee safety rules. Our machines working smoothly in many countries of the world. It is designed to have the best equipment.

ARPLUS™ INTERACTIVE SERVICE SUPPORT
Adremac Machinery, as standard equipment, provides remote connection and ease of intervention to the machines when necessary, while it makes it easier to detect and intervene all kinds of mechanical and operational problems instantly with ARPlus™. Adremac ARPlus provides many of our customers with a new generation support experience.
Fast Spare Parts
As Adremac, the equivalents of all equipment that are likely to malfunction are kept in our stocks and stand by to provide the fastest service in any possible malfunction.

Energy efficiency
All our machines are designed to use energy and natural resources in the most efficient way with the most efficient equipment and technologies to reduce carbon emissions.
Synchronization
As Adremac Makine, we offer our customers the most accurate and stable operation with our automation unit. Our machines, which can be easily synchronized to many different systems, are designed to achieve perfection independently and as a system.

Vacuum Tanks

Anti corrosion stainless steel vacuum tanks are works fully automated .

With Vacutech® system provides soundless and clear vacuum performance and up to %50 less power consumption

Easy filter changing and less maintenence makes the vacuum performance highest Level.

Thermoregulation valves uses effectife water consumption.

Monoblock or dual chamber vacuum tanks make your extrusions simple.

	Type	Diameter Range (mm)	Lenght (m)
MONO BLOCK	ADVT – 40	10 – 40	6
	ADVT – 125	16 – 125	6 – 9
	ADVT – 160	32 – 160	6 – 9
	ADVT – 250	50 – 250	6 – 9
DUAL CHAMBERS	ADVT – 250	50 – 250	3 + 6
	ADVT – 400	110 – 400	3 + 6
	ADVT – 800	200 – 630	3 + 6
	ADVT – 250	250 – 800	3 + 6
	ADVT – 1000	400 – 1000	3 + 6

Cooling Tanks

Stainless steel cooling tanks gives long service time, ergonomic design
of filter and easy connect sprays makes your maintenance easy and serve perfect cooling.

Special conical design spray nozzle effective cooling.

Expanded water surface and thermoregulation water valves works smart.

Type	Diameter Range	1. Area Size
ADVT – 40 (FULL)	10 – 40	6
ADVT – 125	16 – 125	6 – 10
ADVT – 160	32 – 160	6 – 10
ADVT – 250	50 – 250	3
ADVT – 400	90 – 400	3
ADVT – 630	90 – 630	3
ADVT – 800	160 – 800	3
ADVT – 1000	250 – 1000	3

Haul Off

Adremac Pipe Haul Offs are specially designed for consistent pipe extrusion.
Caterpillar and Belt type haul offs transformative belt design and rope on top additions gives comfortable pipe extrusion.

High wear resistancematerials of the pallets and Belts
Individually motor control
Easy synchronization
Remote Control additions

Type	Diameter Range	Number of Pallets
ADH – 40	10 – 40	2
ADH – 63	16 – 63	2
ADH – 125	20 – 125	2
ADH – 160	32 – 160	3
ADH – 250	50 – 250	4
ADH – 400	90 – 400	6
ADH – 630	90 – 630	6
ADH – 800	200 – 800	8
ADH – 1000	250 – 1000	10

Ropeontop™ (Optional)

With the Ropeontop™ add-on, it enables the line to be operated with much faster, more practical and much shorter guide pipes at the first start of the line, especially in large diameter pipe productions. With its external control system, works synchronously with the Haul Off, will be your best assistant in large diameter pipe productions.

With the option of Wireless control gives flexible working.

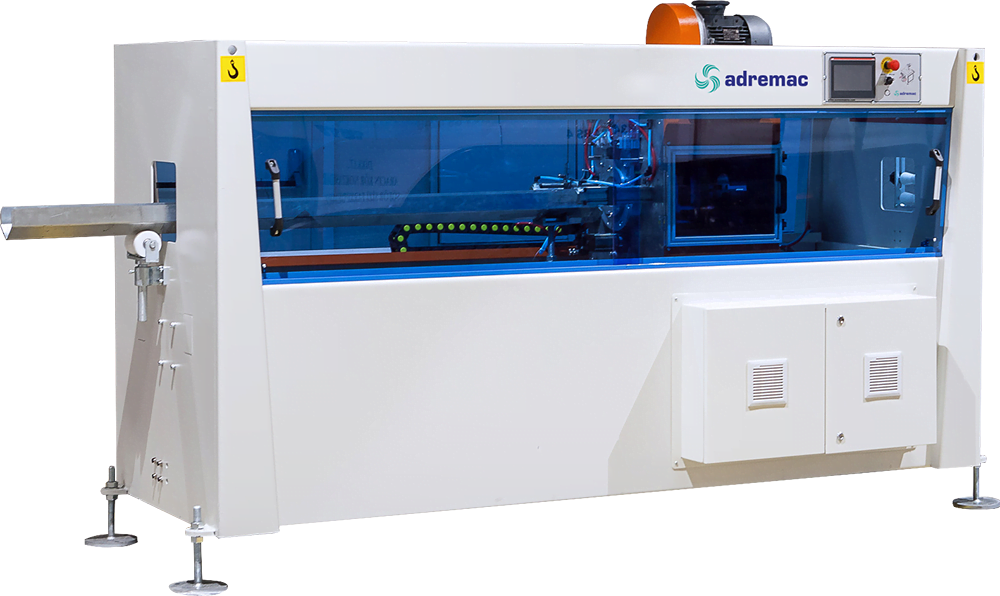

Cutter ( PVC and PP Saw Cutters )

Servo motor controlled precise cutters cuts in an exact length of the pipes even on a high production speed. Dust collectors and filtration make dust free operation zone. Hydraulic clamping and easy operation makes life time longer.

Chipless Cutters For PPRC and PE Smooth Pipes
With servo motor control rotary cutters. Works high frequency cutting with
less tolerance. Special Vagoon design and structural lightness makes fast
cuts in a short time.

Dustless Chamfering for PP Pipes
Special designed chamfering knive located directly opposite cutting knive makes chamfering without dust.

The leftovers are only stripes which is reusable on extrusion.

Small vagoon and fast cuts makes production capacity is much higher than classical saw cutters.

Rotary Cutters

Name	Max. Diameter	Material	Chamfering
ADCUT – 63	125	PE & PP	–
ADCUT – 125	125	PE & PP	OPTIONAL
ADCUT – 160	160	PE & PP	OPTIONAL
ADCUT – 250	250	PE & PP	–
ADCUT – 400	400	PE & PP	–
ADCUT – 630	630	PE & PP	–
ADCUT – 800	800	PE & PP	–
ADCUT – 1000	1000	PE & PP	–

Planetary Cutters

Name	Max. Diameter	Material	Chamfering
ADCUT – 125	125	PP & PVC	YES
ADCUT – 160	160	PP & PVC	YES
ADCUT – 250	250	PP & PVC	YES
ADCUT – 400	400	PP & PVC	YES
ADCUT – 630	630	PP & PVC	YES
