A plastic pipe extrusion line is a specialized production system used for manufacturing plastic pipes from materials such as PVC, PE, and PP. The extrusion process involves melting the raw plastic material and forcing it through a die to create a continuous pipe with precise dimensions. This method is widely used in industries such as construction, plumbing, and infrastructure due to its efficiency and ability to produce durable pipes in various sizes and specifications.
Key Components of a Plastic Pipe Extrusion Line:
- Extruder: The heart of the extrusion line, the extruder, heats and melts the raw plastic material. A rotating screw inside the barrel pushes the material through the system while maintaining even heat distribution.
- Die Head: The die head shapes the molten plastic into a cylindrical pipe. The die’s design is crucial as it determines the pipe’s size and thickness, ensuring precision and consistency.
- Vacuum Calibration Tank: After the plastic exits the die, it enters the vacuum calibration tank. This step helps maintain the correct dimensions of the pipe by cooling and stabilizing its shape.
- Cooling Tank: The pipe is then cooled further in a water tank to solidify the material and enhance its mechanical properties such as strength and flexibility.

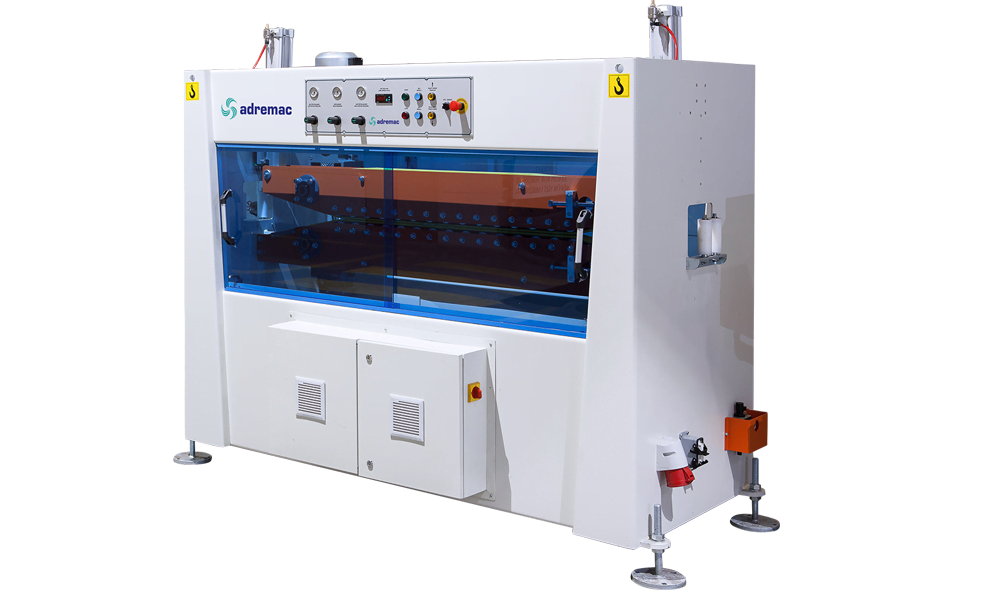

- Haul-Off Machine: The haul-off machine pulls the pipe through the extrusion line at a controlled speed, ensuring uniform thickness and shape.

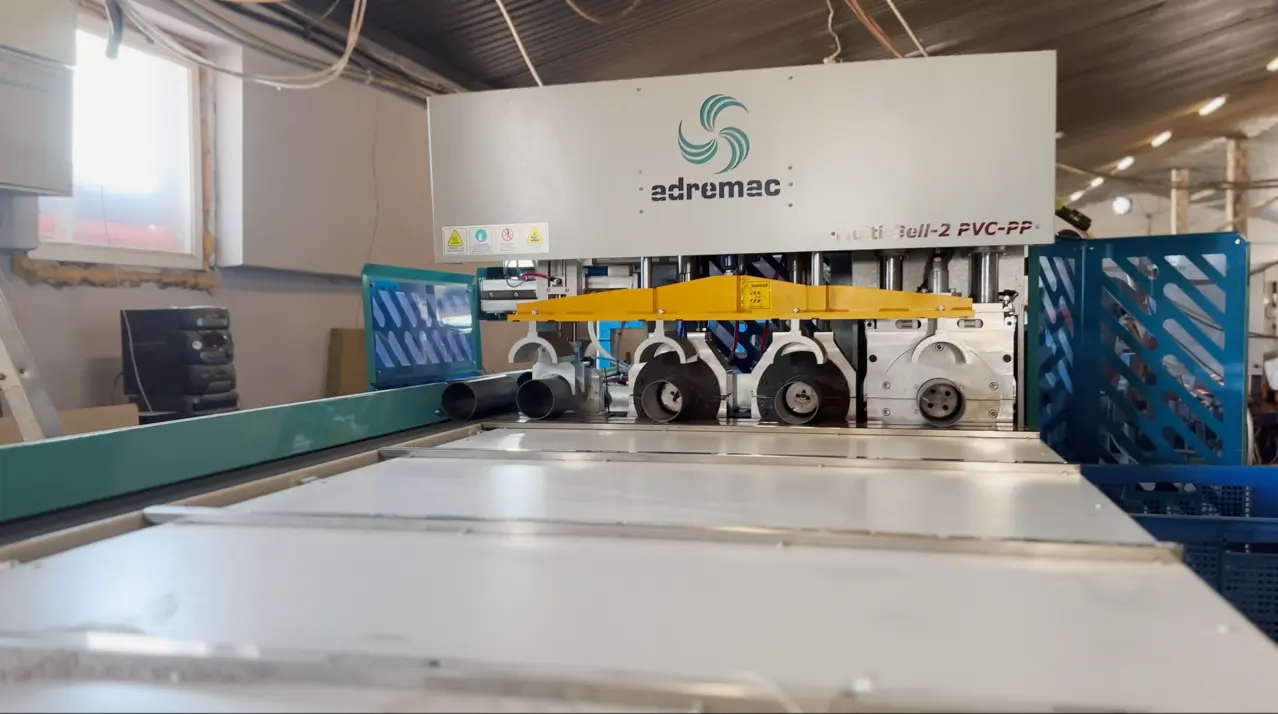

- Cutter: The pipe is cut to the desired length by a cutter. Some extrusion lines may also include a belling machine to create socket ends, facilitating easier pipe connections.
- Quality Control: Each pipe undergoes rigorous testing for dimensional accuracy, strength, and other critical properties. This ensures compliance with industry standards and durability in various applications.
Advantages of a Plastic Pipe Extrusion Line:
- High Production Speed: Continuous pipe production allows for high output, making it ideal for large-scale projects.
- Versatility: Different materials and pipe sizes can be produced with the same extrusion line by simply changing the die head or adjusting the settings.
- Cost-Effective: The extrusion process minimizes waste, reducing overall production costs while maintaining high-quality output.
Plastic pipe extrusion lines are vital for industries that require robust and reliable piping systems, including water supply, gas distribution, and industrial drainage. With advancements in technology, these lines now offer greater efficiency, flexibility, and precision in manufacturing.
